0.05 Na2O • 0.95 SiO2 MAS-ETA¶
The following example is an application of the statistical learning method in determining the distribution of the Si-29 echo train decay constants in glasses.
Import all relevant packages.
import csdmpy as cp
import matplotlib.pyplot as plt
import numpy as np
from mrinversion.kernel import relaxation
from mrinversion.linear_model import LassoFistaCV, TSVDCompression
from csdmpy import statistics as stats
plt.rcParams["pdf.fonttype"] = 42 # For using plots in Illustrator
plt.rc("font", size=9)
def plot2D(csdm_object, **kwargs):
plt.figure(figsize=(4, 3))
csdm_object.plot(cmap="gist_ncar_r", **kwargs)
plt.tight_layout()
plt.show()
Dataset setup¶
Import the dataset¶
Load the dataset as a CSDM data-object.
# The 2D SE-PIETA MAS dataset in csdm format
domain = "https://www.ssnmr.org/sites/default/files/mrsimulator"
filename = f"{domain}/MAS_SE_PIETA_5Na_95Si_FT.csdf"
data_object = cp.load(filename)
# Inversion only requires the real part of the complex dataset.
data_object = data_object.real
sigma = 1089.445 # data standard deviation
# Convert the MAS dimension from Hz to ppm.
data_object.dimensions[0].to("ppm", "nmr_frequency_ratio")

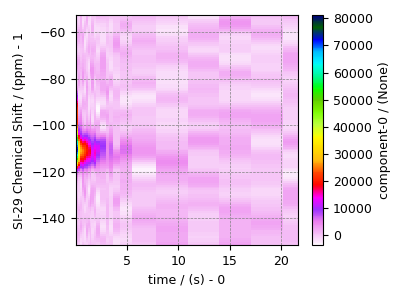

plot2D(data_object)
Prepping the data for inversion¶
data_object = data_object.T
data_object_truncated = data_object[:, 1220:-1220]
plot2D(data_object_truncated)
Linear Inversion setup¶
Dimension setup¶
data_object_truncated.dimensions[0].to("s") # set coordinates to 's'
kernel_dimension = data_object_truncated.dimensions[0]
Generating the kernel¶
relaxT2 = relaxation.T2(
kernel_dimension=kernel_dimension,
inverse_dimension=dict(
count=32,
minimum="1e-3 s",
maximum="1e4 s",
scale="log",
label=r"log ($\lambda^{-1}$ / s)",
),
)
inverse_dimension = relaxT2.inverse_dimension
K = relaxT2.kernel(supersampling=20)
Data Compression¶
new_system = TSVDCompression(K, data_object_truncated)
compressed_K = new_system.compressed_K
compressed_s = new_system.compressed_s
print(f"truncation_index = {new_system.truncation_index}")
compression factor = 1.3333333333333333
truncation_index = 18
Solving the inverse problem¶
FISTA LASSO cross-validation¶
# setup the pre-defined range of alpha and lambda values
lambdas = 10 ** (-4 + 5 * (np.arange(32) / 31))
# setup the smooth lasso cross-validation class
s_lasso = LassoFistaCV(
lambdas=lambdas, # A numpy array of lambda values.
sigma=sigma, # data standard deviation
folds=5, # The number of folds in n-folds cross-validation.
inverse_dimension=inverse_dimension, # previously defined inverse dimensions.
)
# run the fit method on the compressed kernel and compressed data.
s_lasso.fit(K=compressed_K, s=compressed_s)
The optimum hyper-parameters¶
print(s_lasso.hyperparameters)
{'lambda': 0.038075460212223716}

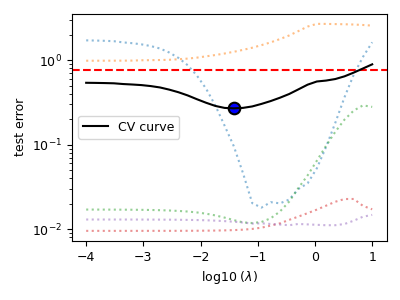

The cross-validation curve¶
plt.figure(figsize=(4, 3))
s_lasso.cv_plot()
plt.tight_layout()
plt.show()
The optimum solution¶
f_sol = s_lasso.f
levels = np.arange(15) / 15 + 0.1
plt.figure(figsize=(3.85, 2.75)) # set the figure size
ax = plt.subplot(projection="csdm")
cb = ax.contourf(f_sol / f_sol.max(), levels=levels, cmap="jet_r")
ax.set_ylim(-70, -130)
ax.set_xlim(-3, 2.5)
plt.title("5Na:95Si")
ax.set_xlabel(r"$\log(\lambda^{-1}\,/\,$s)")
ax.set_ylabel("Frequency / ppm")
plt.grid(linestyle="--", alpha=0.75)
plt.colorbar(cb, ticks=np.arange(11) / 10)
plt.tight_layout()
plt.show()

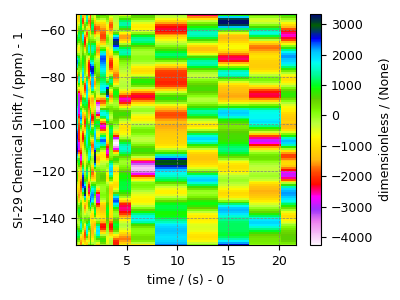

The fit residuals¶
residuals = s_lasso.residuals(K=K, s=data_object_truncated)
plot2D(residuals)
The standard deviation of the residuals is
<Quantity 1246.1962643>
Saving the solution¶
f_sol.save("5Na-95Si_inverse.csdf") # save the solution
residuals.save("5Na-95Si_residue.csdf") # save the residuals
Analysis¶
# Normalize the distribution to 1.
f_sol /= f_sol.max()
# Get the Q4 and Q3 cross-sections.
Q4_coordinate = -110.7e-6 # ppm
Q3_coordinate = -94.4e-6 # ppm
Q4_index = np.where(f_sol.dimensions[1].coordinates >= Q4_coordinate)[0][0]
Q3_index = np.where(f_sol.dimensions[1].coordinates >= Q3_coordinate)[0][0]
Q4_region = f_sol[:, Q4_index]
Q3_region = f_sol[:, Q3_index]
Plot of the Q4 and Q3 cross-sections
fig, ax = plt.subplots(1, 2, figsize=(7, 2.75), subplot_kw={"projection": "csdm"})
cb = ax[0].contourf(f_sol, levels=levels, cmap="jet_r")
ax[0].arrow(1, Q4_coordinate * 1e6, -0.5, 0, color="blue")
ax[0].arrow(1, Q3_coordinate * 1e6, -0.5, 0, color="orange")
ax[0].set_ylim(-70, -130)
ax[0].set_xlim(-3, 2.5)
ax[0].set_xlabel(r"$\log(\lambda^{-1}\,/\,$s)")
ax[0].set_ylabel("Frequency / ppm")
ax[0].grid(linestyle="--", alpha=0.75)
ax[1].plot(Q4_region, label="Q4")
ax[1].plot(Q3_region, label="Q3")
ax[1].set_xlim(-3, 2.5)
ax[1].set_xlabel(r"$\log(\lambda^{-1}\,/\,$s)")
ax[1].grid(linestyle="--", alpha=0.75)
plt.colorbar(cb, ax=ax[0], ticks=np.arange(11) / 10)
plt.tight_layout()
plt.legend()
plt.savefig("5Na-95Si.pdf")
plt.show()
Mean and mode analysis¶
The T2 distribution is sampled over a log-linear scale. The statistical mean of the Q4_region and Q3_region in log10(T2). The mean T2 is 10**(log10(T2)), in units of seconds.
Q4_mean = 10 ** stats.mean(Q4_region)[0] * 1e3 # ms
Q3_mean = 10 ** stats.mean(Q3_region)[0] * 1e3 # ms
Mode the argument corresponding to the max distribution.
# index corresponding to the max distribution.
arg_index_Q4 = int(np.argmax(Q4_region))
arg_index_Q3 = int(np.argmax(Q3_region))
# log10(T2) coordinates corresponding to the max distribution.
arg_coord_Q4 = Q4_region.dimensions[0].coordinates[arg_index_Q4]
arg_coord_Q3 = Q3_region.dimensions[0].coordinates[arg_index_Q3]
# T2 coordinates corresponding to the max distribution.
Q4_mode = 10**arg_coord_Q4 * 1e3 # ms
Q3_mode = 10**arg_coord_Q3 * 1e3 # ms
Results¶
Q4 statistics:
mean = 367.6843404415385 ms,
mode = 181.16091942004059 ms
Q3 statistics:
mean = 63.47343999591198 ms,
mode = 107.71050560367647 ms
r_λ (mean) = 5.792727485153149
r_λ (mode) = 1.6819243248808688
Total running time of the script: (0 minutes 40.384 seconds)
